semaine::cms::receiver::Receiver Class Reference

#include <Receiver.h>

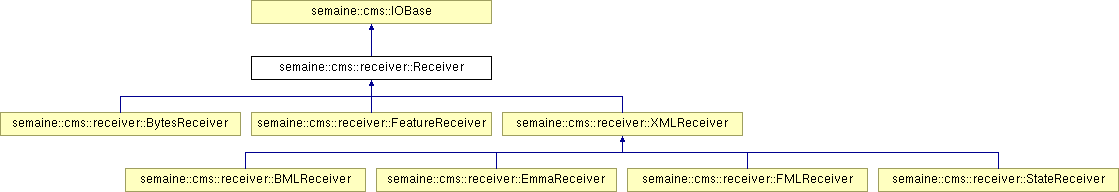

Inheritance diagram for semaine::cms::receiver::Receiver:

List of all members.

Public Member Functions
	Receiver (const std::string &topicName) throw (CMSException)
	Receiver (const std::string &topicName, const std::string &messageSelector) throw (CMSException)
	Receiver (const std::string &cmsUrl, const std::string &cmsUser, const std::string &cmsPassword, const std::string &topicName) throw (CMSException)
	Receiver (const std::string &cmsUrl, const std::string &cmsUser, const std::string &cmsPassword, const std::string &topicName, const std::string &messageSelector) throw (CMSException)
virtual	~Receiver ()
std::string	getMessageSelector () throw (CMSException)
SEMAINEMessage *	receive () throw (CMSException, semaine::cms::exceptions::SystemConfigurationException)
SEMAINEMessage *	receive (int timeout) throw (CMSException, semaine::cms::exceptions::SystemConfigurationException)
SEMAINEMessage *	receiveNoWait () throw (CMSException, semaine::cms::exceptions::SystemConfigurationException)
void	setMessageListener (SEMAINEMessageAvailableListener *aListener) throw (CMSException)
SEMAINEMessageAvailableListener *	getMessageListener ()
virtual void	onMessage (const Message *m)
SEMAINEMessage *	getMessage ()
bool	notPickedUp ()
Protected Member Functions
virtual SEMAINEMessage *	createSEMAINEMessage (const Message *message) throw (semaine::cms::exceptions::MessageFormatException)
Protected Attributes
MessageConsumer *	consumer
SEMAINEMessageAvailableListener *	listener
CMSLogger *	log
SEMAINEMessage *	message
decaf::util::concurrent::Mutex	mutex

---

Detailed Description

This class handles the common part to all message receivers in the SEMAINE system.

Two models of use are possible:

• synchronous API: client code calls the methods receive(), receive(long) or receiveNoWait() directly;
• asynchronous API: client code registers a SEMAINEMessageAvailableListener; whenever a new message arrives, the Receiver thread will call that listener's SEMAINEMessageAvailableListener#messageAvailableFrom(Receiver) method. The listener code then calls the Receiver's getMessage() method from the thread that should actually do the processing of the message. Note that in the asynchronous API, the Receiver will block until getMessage() was called.

The Receiver itself covers basic text messages only. Subclasses should override createSEMAINEMessage(Message) to do a meaningful analysis of the JMS message in terms of a suitable subclass of SEMAINEMessage.

Author:

marc

---

Constructor & Destructor Documentation

Receiver::Receiver

(

const std::string &

topicName

)

throw (CMSException)

Create a receiver that will listen for all messages in the given Topic on the default JMS server. The default JMS server is determined as follows:

• jms URL: default value tcp://localhost:61616;
• jms User: default value empty;
• jms Password: default value empty.

Parameters:

topic

the name of the CMS Topic to listen to.

Receiver::Receiver	(	const std::string &	topicName,
		const std::string &	messageSelector
	)			throw (CMSException)

Create a receiver that will listen only to the messages in the given Topic that will pass the given messageSelector, on the default JMS server. The default JMS server is determined as follows:

• jms URL: default value tcp://localhost:61616;
• jms User: default value empty;
• jms Password: default value empty.

Parameters:

	topicName	the name of the JMS Topic to listen to.
	messageSelector	a message selector expression, see e.g. http://java.sun.com/javaee/5/docs/api/javax/jms/Message.html for the detailed description.

Receiver::Receiver	(	const std::string &	cmsUrl,
		const std::string &	cmsUser,
		const std::string &	cmsPassword,
		const std::string &	topicName
	)			throw (CMSException)

Create a receiver that will listen for all messages in the given Topic on the given JMS server.

Parameters:

	cmsUrl	the url where to contact the JMS server
	cmsUser	the username to use (can be an empty string)
	cmsPassword	the password to use (can be an empty string)
	topic	the name of the CMS Topic to listen to.

Receiver::Receiver	(	const std::string &	cmsUrl,
		const std::string &	cmsUser,
		const std::string &	cmsPassword,
		const std::string &	topicName,
		const std::string &	messageSelector
	)			throw (CMSException)

Create a receiver that will listen only to the messages in the given Topic that will pass the given messageSelector, on the given JMS server.

Parameters:

	cmsUrl	the url where to contact the JMS server
	cmsUser	the username to use (can be an empty string)
	cmsPassword	the password to use (can be an empty string)
	topicName	the name of the JMS Topic to listen to.
	messageSelector	a message selector expression, see e.g. http://java.sun.com/javaee/5/docs/api/javax/jms/Message.html for the detailed description.

Receiver::~Receiver

(

)

[virtual]

---

Member Function Documentation

SEMAINEMessage * Receiver::createSEMAINEMessage

(

const Message *

message

)

throw (semaine::cms::exceptions::MessageFormatException) [protected, virtual]

Create a SEMAINE message from the given CMS message. Subclasses may want to override this in order to provide subclasses of SEMAINEMessage for their data.

Parameters:

message

the CMS method to convert into a SEMAINE message.

Exceptions:

	MessageFormatException	if the message format is problematic
	NullPointerException	if message is null.

Reimplemented in semaine::cms::receiver::BytesReceiver, semaine::cms::receiver::EmmaReceiver, semaine::cms::receiver::FeatureReceiver, semaine::cms::receiver::StateReceiver, and semaine::cms::receiver::XMLReceiver.

SEMAINEMessage * Receiver::getMessage

(

)

SEMAINEMessageAvailableListener* semaine::cms::receiver::Receiver::getMessageListener

(

)

[inline]

std::string semaine::cms::receiver::Receiver::getMessageSelector

(

)

throw (CMSException) [inline]

Get the message selector pattern active in this receiver to filter messages.

Returns:

a string representation of the selector pattern.

Exceptions:

CMSException

bool Receiver::notPickedUp

(

)

void Receiver::onMessage

(

const Message *

m

)

[virtual]

Reimplemented in semaine::cms::receiver::StateReceiver.

SEMAINEMessage * Receiver::receive

(

int

timeout

)

throw (CMSException, semaine::cms::exceptions::SystemConfigurationException)

Receives the next message that arrives within the specified timeout interval. This call blocks until a message arrives, the timeout expires, or this message consumer is closed. A timeout of zero never expires, and the call blocks indefinitely.

Parameters:

timeout

the timeout value (in milliseconds)

Returns:

the next message produced for this message consumer, or null if the timeout expires or this message consumer is concurrently closed

Exceptions:

	CMSException	if the CMS provider fails to receive the next message due to some internal error.
	SystemConfigurationException	if the connection was not started before calling this method.

SEMAINEMessage * Receiver::receive

(

)

throw (CMSException, semaine::cms::exceptions::SystemConfigurationException)

Receives the next message produced for this message consumer. This call blocks indefinitely until a message is produced or until this message consumer is closed.

Returns:

the next message produced for this message consumer, or null if this message consumer is concurrently closed

Exceptions:

	CMSException	if the CMS provider fails to receive the next message due to some internal error.
	SystemConfigurationException	if the connection was not started before calling this method.

SEMAINEMessage * Receiver::receiveNoWait

(

)

throw (CMSException, semaine::cms::exceptions::SystemConfigurationException)

Receives the next message if one is immediately available.

Returns:

the next message produced for this message consumer, or null if one is not available

Exceptions:

	CMSException	if the CMS provider fails to receive the next message due to some internal error.
	SystemConfigurationException	if the connection was not started before calling this method.

void Receiver::setMessageListener

(

SEMAINEMessageAvailableListener *

aListener

)

throw (CMSException)

---

Member Data Documentation

MessageConsumer* semaine::cms::receiver::Receiver::consumer [protected]

SEMAINEMessageAvailableListener* semaine::cms::receiver::Receiver::listener [protected]

CMSLogger* semaine::cms::receiver::Receiver::log [protected]

SEMAINEMessage* semaine::cms::receiver::Receiver::message [protected]

decaf::util::concurrent::Mutex semaine::cms::receiver::Receiver::mutex [protected]

---

The documentation for this class was generated from the following files:

• src/semaine/cms/receiver/Receiver.h
• src/semaine/cms/receiver/Receiver.cpp
