semaine::components::Component Class Reference

#include <Component.h>

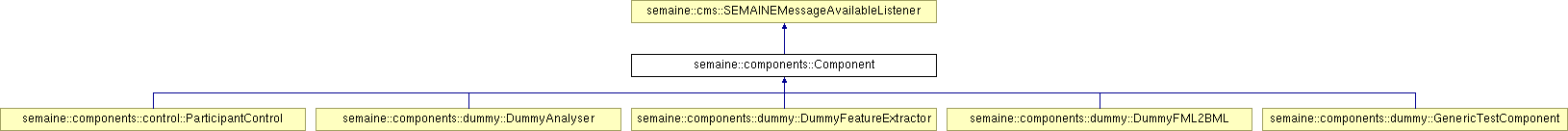

Inheritance diagram for semaine::components::Component:

List of all members.

Public Member Functions
virtual	~Component ()
const std::string	getName ()
virtual void	messageAvailableFrom (Receiver *const source)
void	run ()
void	requestExit ()
Static Public Attributes
static const std::string	STATE_STARTING = "starting"
static const std::string	STATE_READY = "ready"
static const std::string	STATE_STOPPED = "stopped"
static const std::string	STATE_FAILURE = "failure"
static const std::string	STATE_STALLED = "stalled"
Protected Member Functions
	Component (const std::string &componentName, bool isInput=false, bool isOutput=false) throw (CMSException)
	Component (const std::string &componentName, const std::string &cmsUrl, const std::string &cmsUser="", const std::string &cmsPassword="") throw (CMSException)
	Component (const std::string &componentName, bool isInput, bool isOutput, const std::string &cmsUrl, const std::string &cmsUser, const std::string &cmsPassword) throw (CMSException)
bool	exitRequested ()
virtual void	act () throw (std::exception)
virtual void	react (SEMAINEMessage *message) throw (std::exception)
virtual void	customStartIO () throw (std::exception)
Protected Attributes
std::list< Receiver * >	receivers
std::list< Sender * >	senders
std::queue< Receiver * >	inputWaiting
CMSLogger *	log
bool	_exitRequested
std::string	state
MetaMessenger	meta
int	waitingTime
bool	isInput
bool	isOutput
decaf::util::concurrent::Mutex	mutex

---

Detailed Description

The base class for all components. Subclasses need to:

• create receivers and/or senders in their constructor;
• implement act() and/or react(SEMAINEMessage) to do something meaningful.

Author:

marc

---

Constructor & Destructor Documentation

semaine::components::Component::~Component

(

)

[virtual]

semaine::components::Component::Component	(	const std::string &	componentName,
		bool	isInput = false,
		bool	isOutput = false
	)			throw (CMSException) [protected]

Create a component with the given name. The component communicates with the default CMS server (see IOBase#IOBase()).

Parameters:

	componentName	the component name as it is to be used throughout the system.
	isInput	whether the component is an input component (optional, defaults to false)
	isOutput	whether the component is an output component (optional, defaults to false)

Exceptions:

JMSException

if the connection to the middleware cannot be established

semaine::components::Component::Component	(	const std::string &	componentName,
		const std::string &	cmsUrl,
		const std::string &	cmsUser = "",
		const std::string &	cmsPassword = ""
	)			throw (CMSException) [protected]

Create a component with the given name. The component is neither an input nor an output component, communicates with the CMS server given in the arguments.

Parameters:

	componentName	the component name as it is to be used throughout the system.
	cmsUrl	the url where to contact the CMS server.
	cmsUser	the username to use (optional)
	cmsPassword	the password to use (optional)

Exceptions:

JMSException

if the connection to the middleware cannot be established

semaine::components::Component::Component	(	const std::string &	componentName,
		bool	isInput,
		bool	isOutput,
		const std::string &	cmsUrl,
		const std::string &	cmsUser,
		const std::string &	cmsPassword
	)			throw (CMSException) [protected]

Create a component with the given name. The component communicates with the CMS server given in the arguments.

Parameters:

	componentName	the component name as it is to be used throughout the system.
	isInput	whether the component is an input component
	isOutput	whether the component is an output component
	cmsUrl	the url where to contact the CMS server.
	cmsUser	the username to use (can be the empty string)
	cmsPassword	the password to use (can be the empty string)

Exceptions:

JMSException

if the connection to the middleware cannot be established

---

Member Function Documentation

virtual void semaine::components::Component::act

(

)

throw (std::exception) [inline, protected, virtual]

Proactive actions. This method is called every waitingTime milliseconds if no messages arrive, and after every message processing.

This base implementation does nothing; subclasses should implement suitable behaviour here.

Exceptions:

	CMSException	if communication with the JMS server goes wrong.
	std::exception	if anything goes wrong in the internal processing of the component.

Reimplemented in semaine::components::dummy::DummyFeatureExtractor, and semaine::components::dummy::GenericTestComponent.

virtual void semaine::components::Component::customStartIO

(

)

throw (std::exception) [inline, protected, virtual]

Subclasses can implement this method in order to run custom code needed at startup time.

Exceptions:

std::exception

if anything goes wrong in the internal processing of the component.

Reimplemented in semaine::components::control::ParticipantControl, and semaine::components::dummy::DummyFeatureExtractor.

bool semaine::components::Component::exitRequested

(

)

[protected]

const std::string semaine::components::Component::getName

(

)

[inline]

virtual void semaine::components::Component::messageAvailableFrom

(

Receiver *const

source

)

[virtual]

Method called from the corresponding receiver thread, to notify us that a message is available.

Implements semaine::cms::SEMAINEMessageAvailableListener.

virtual void semaine::components::Component::react

(

SEMAINEMessage *

message

)

throw (std::exception) [inline, protected, virtual]

Reactions to messages.

This base implementation does nothing; subclasses should implement suitable behaviour here.

Exceptions:

	CMSException	if communication with the JMS server goes wrong.
	std::exception	if anything goes wrong in the internal processing of the component.

Reimplemented in semaine::components::control::ParticipantControl, semaine::components::dummy::DummyAnalyser, semaine::components::dummy::DummyFML2BML, and semaine::components::dummy::GenericTestComponent.

void semaine::components::Component::requestExit

(

)

void semaine::components::Component::run

(

)

The main method executed for this Thread.

---

Member Data Documentation

bool semaine::components::Component::_exitRequested [protected]

std::queue<Receiver *> semaine::components::Component::inputWaiting [protected]

bool semaine::components::Component::isInput [protected]

bool semaine::components::Component::isOutput [protected]

CMSLogger* semaine::components::Component::log [protected]

MetaMessenger semaine::components::Component::meta [protected]

decaf::util::concurrent::Mutex semaine::components::Component::mutex [protected]

std::list<Receiver *> semaine::components::Component::receivers [protected]

std::list<Sender *> semaine::components::Component::senders [protected]

std::string semaine::components::Component::state [protected]

const std::string semaine::components::Component::STATE_FAILURE = "failure" [static]

const std::string semaine::components::Component::STATE_READY = "ready" [static]

const std::string semaine::components::Component::STATE_STALLED = "stalled" [static]

const std::string semaine::components::Component::STATE_STARTING = "starting" [static]

const std::string semaine::components::Component::STATE_STOPPED = "stopped" [static]

int semaine::components::Component::waitingTime [protected]

---

The documentation for this class was generated from the following files:

• src/semaine/components/Component.h
• src/semaine/components/Component.cpp
